Order Products From China Outdoor Mobile Cheap Rail Mounted Gantry Crane
The use of electric hoist gantry cranes (MHK, MHN, MHS)
The electric hoist gantry crane is a crane suitable for outdoor and indoor occasions where no traveling beam is installed. Its advantages
The point is economical and practical, low cost and convenient and flexible operation. It is an ideal choice for outdoor light lifting operations.
Product Overview
5 ton 10 ton Single Girder Chinese Gantry Crane for Industrial Factory
Gantry crane is similar to a bridge crane, but instead of moving on suspended runways, the crane uses legs to support the bridge, and the electric hoist. The crane legs travel on fixed rails embedded in, or laid on top of the floor.
Gantry crane is used in an outdoor or indoor applications where full beams and columns can’t be installed, or may be used below an existing bridge crane system. Wireless remote control frame crane can most commonly be found in shipyards, railyards, special outdoor projects like the construction of a bridge, or in places like steel mills where overhead room may be an issue.
1.Electric Hoist Gantry Crane Description
12t zpmc container gantry crane is a regular crane widely used at open ground and warehouses to lqad. unload or grab materials.
The capacity:3.2-32ton
The span : 12-30m
The working grade : A5
The working temperature:-20℃ to 40℃
Technical parametersof single girder gantry crane:
| Mechanism | | Item | Unit | Result |
| Item | | |
| Lifting capacity | ton | 3.2-32 |
| Lifting height | m | 6 9 |
| Span | m | 12-30m |
| Working environment temperture | °C | -20~40 |
| Travelling mechanism | Travelling speed | Ground | m/min | 20 |
| Controlling Room | 20 |
| Lifting mechanism | lifting speed | m/min | 8 0.8/8 7 0.7/7 3.5 3 |
| travelling speed | m/min | 20 |
| working system | A5 |
| power source | three-phase 380V 50HZ |
Product Tags:
|
|

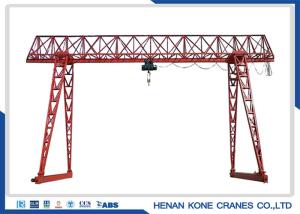

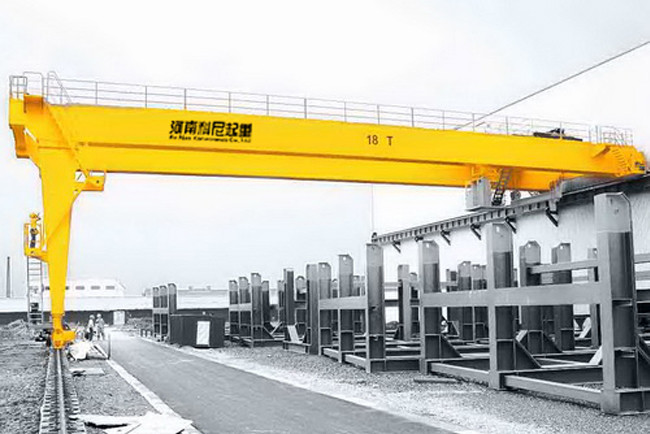

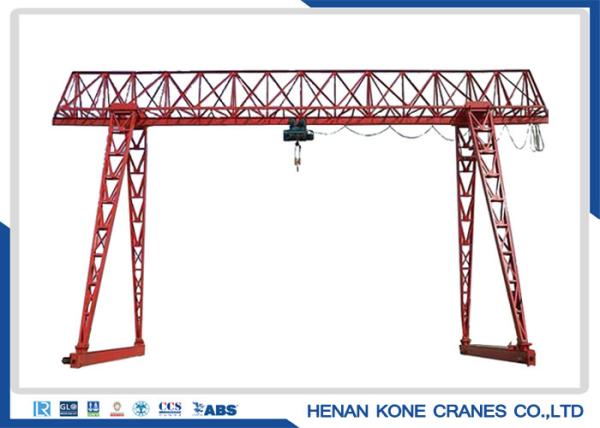

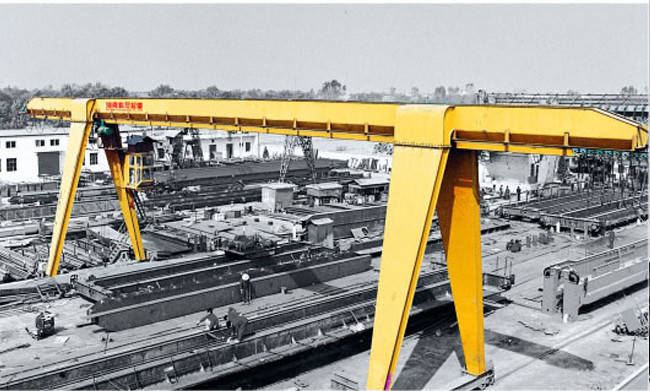

Outdoor Rail Mounted Single Box Girder Mobile Gantry Crane Images
|
