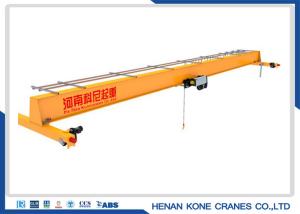

30M Electric Overhead Crane

Brand Name : KN

Model Number : LD

Certification : BV CE ISO

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000PCS

Delivery Time : 30work days

Packaging Details : Wooden box

working system : A5, A6

Control method : Ground control or cabin control

Crane feature : double girder overhead crane

Emergency stop system : Include

Voltage lower protection function : Include

Limit Switch : Included

Electric protection : IP54,IP55

Contact Now

20 Ton, 30 Ton Span 30M Fem Standard Overhead Crane Price

Technical characteristics:

The limiting size is the lowest between the top of crab and the track of trolley, that is to say, it reduces 20%-30% compared with traditional products, which can reduce the capacity of workshop 20% efficiency. It has hard-tooth reducer, imported wire-rope, and trinity drive. It is equipped with such protecting devices as alarm device to overloading, obliquely hanging second protecting equipment preventing hook clashing the top, protecting the current lacking of any phrase etc. The operating board (handle) adopts 12v safe voltage to fulfill multifunction of protection to overheadhoist. The electric controlling can be used more than 2 million times when the voltage is 380v+5~-10%.

LX Type Electric Single-girder Underslung Crane 5t
Span	S(m)	3	4	5	6	7	8	9	10

Lifting height	m	9	9	9	9	9	9	9	9
Lifting speed	m/min	8	8	8	8	8	8	8	8
Trolley speed	m/min	20	20	20	20	20	20	20	20
Crane speed	m/min	20	20	20	20	20	20	20	20
Lifting motor	kw	7.5	7.5	7.5	7.5	7.5	7.5	7.5	7.5
Trolley motor	kw	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8

Total weight	t	1.28	1.36	1.44	1.52	1.60	1.92	2.02	2.12
Max wheel load	t	2.92	2.94	2.96	2.99	3.01	3.10	3.12	3.15
Track		I36a	I36a	I36a	I36a	I36a	I36a	I36a	I36a

Main dimension	mm	3	4	5	6	7	8	9	10
Girder edge to hook	h	1320	1320	1320	1320	1320	1320	1320	1320
Wheel base	W	1000	1000	1000	1000	1000	1500	1500	1500
Crane width	B	1500	1500	1500	1500	1500	2000	2000	2000
Hook left limitation	S1	302	302	302	302	302	302	302	302
Hook right limitation	S2	170	170	170	170	170	170	170	170
Left cantilever	L1	750	750	750	750	750	1000	1000	1000
Right cantilever	L2	750	750	750	750	750	1000	1000	1000
Note: Control mode for ground operation
