Best quality swing tumbler sieve vibrating screen
Size Information
| Model |
Screen mesh area(m²) |
Frequency (r/min) |
Granularitysize(mm) |
Amplitude(mm) |
Power(kw) |
| DZYS-600 |
0.28 |
220-280 |
≤100 |
20-70 |
0.75 |
| DZYS-1000 |
0.66 |
220-280 |
≤100 |
20-70 |
1.5 |
| DZYS-1200 |
0.98 |
220-280 |
≤100 |
20-70 |
2.2 |
| DZYS-1500 |
1.67 |
220-280 |
≤100 |
20-70 |
3.0 |
| DZYS-1800 |
2.37 |
220-280 |
≤100 |
20-70 |
4.0 |
| DZYS-2000 |
2.89 |
220-280 |
≤100 |
20-70 |
4.0 |
| DZYS-2600 |
5.3 |
220-280 |
≤100 |
20-70 |
5.5 |
Product Description
DZJX series swing screening machine is a kind of inertial equipment with mature technology and classical application.Its new design Philosophy and unique structure making it the closest manual screen machine. The Tumbler screening machine have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen. The Tumbler screening machine is particularly used to classify small materials and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving.
Working principle
The machine is drived by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft, The screening time and movement of material on the screen surface can be controlled by adjusting the angle of the two eccentric weights.
Application
-- Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
-- Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
-- Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.
-- Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
-- Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
-- Food industry: sugar, salt, alkali, flour powder, nut powder, farina, gourmet powder, starch, milk powder, yeast powder,
pollen,food additive, bean milk, juice, etc.
Customized construction deck
According to the needs of the buyer, the number of swing screen layers can be customized. At present, our factory supports the customization of one to four layer swing screen.
Product Tags:
|
|

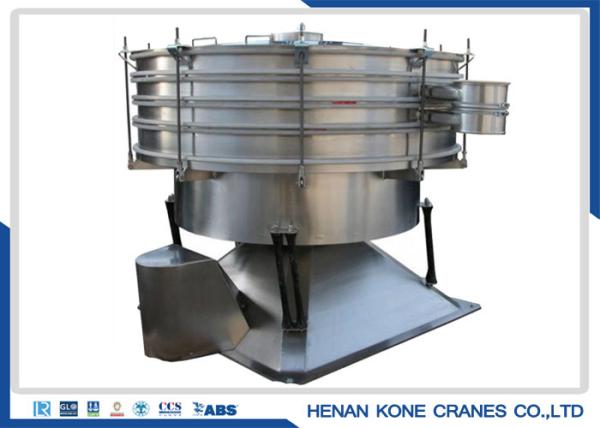

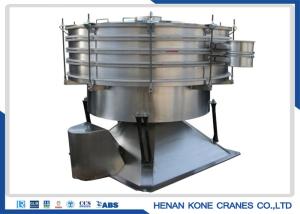

Ultrasonic Swing 70mm 0.75KW Tumbler Screening Machine Images
|
